Beskrivelse af Graphtec FC9000-75 E with stand 36", Grit cutting plotter

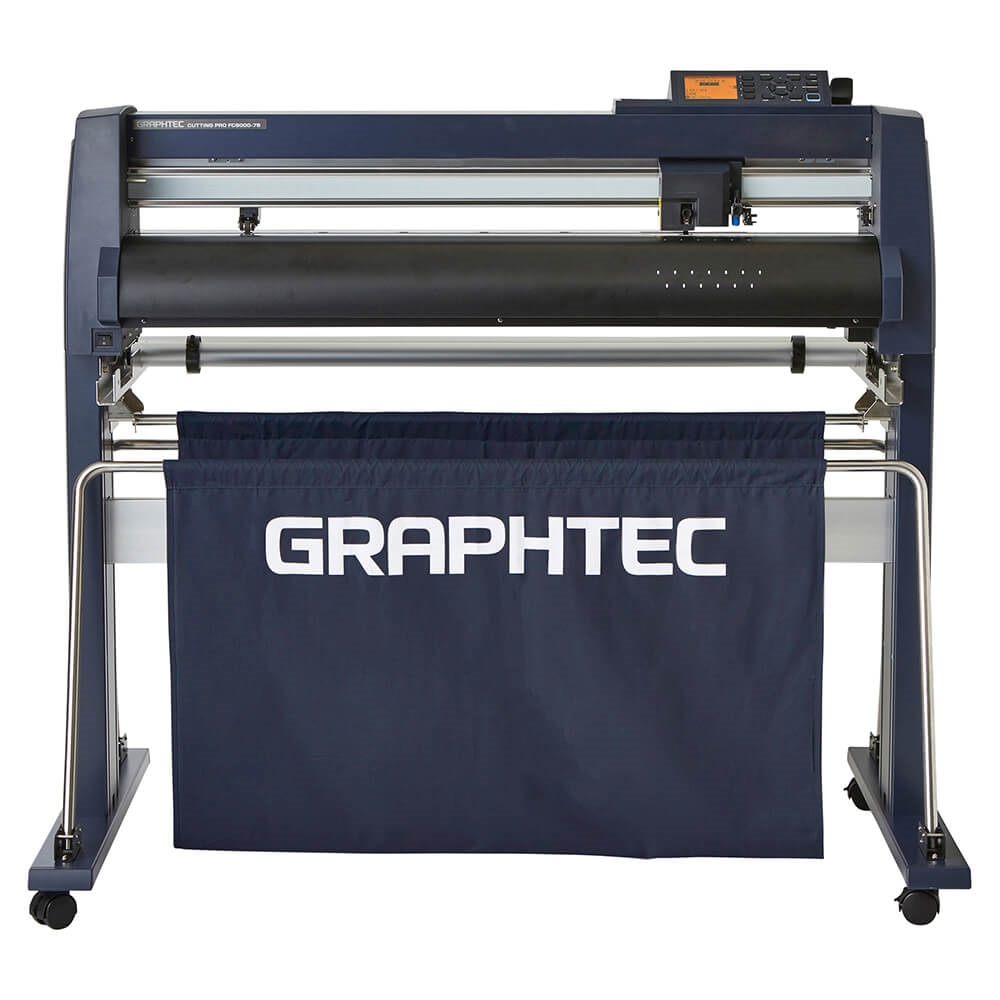

• Graphtec Cutting Pro FC9000 Series Cutting Plotter
  The Graphtec FC9000 Series Cutting Plotter provides higher levels of productivity and greater ease of use than any other cutting plotter on the market.
  The FC9000 comes as standard with media catch nets, networking capabilities, built-in cross-cutter, stand and is available in 4 different widths to perfectly fit into your work space and media requirements.
  Class Leading Performance | Increased High Level Productivity | Premium Design Software

  Key Specifications:
  Configuration: Grit Roller With Digital Servo Drive System
  Built-In Cross Cutter
  Networking Port
  Media Catch Baskets
  Media Tracking Distance: 15m (Extended To 20m If Automatic Take Up Roller Installed on 140 & 160 Versions)
  Maximum Cutting Force: 5.88N (600gf)
  Minimum Character Size: Approx. 3mm Alphanumeric (Varies Depending On Character Font & Type Of Media)
  Programmable Resolution: GP-GL: 0.1 / 0.05 / 0.025 / 0.01 mm, HP-GLTM: 0.025 mm
  Repeat-ability: Max. 0.1 mm In Plot up to 2m
  Mountable Number Of Tools: 2 Tool (When Second Pen Kit Installed)
  Blade Type: Supersteel
  Pen Type: Oil-Based Ballpoint | Water-Based Fibre-Tip
  Media Type: Self-Adhesive Marking Film Up To 0.25mm Thick Or Less (PVCFilm | Fluorescent | Reflective), Polyester Film (On Condition), High Intensity Reflective Film (Diamond Grade | Engineer Grade)
  Perforation Cutting: Yes (Performed By Force Control)
  Interface: RS-232C | USB 2.0
  Buffer Memory: 2MB
  What's Included:
  Plotter Including Matching Stand & Media Stocker
  Cutting Blade Holder: PHP33-CB09N-HS
  Cutting Blade: CB09UB
  Loupe: PM-CT-001 For Checking Blade Length & Condition
  Fibre-Tipped Pen Holder: PHP31-FIBER
  Water-Based Fibre Tipped Pen: KF700-BK
  USB Cable: 2.9m Long
  DVD-ROM
  Manual
  Machine Widths:
  75 = 762mm (30″)
  100 = 1067mm (42″)
  140 = 1372mm (55″)
  160 = 1626mm (64″)
  FC9000 Included Software:
  Graphtec Pro Studio (For Windows)
  Graphtec Studio (For MAC)
  Cutting Master 4 (For Adobe Illustrator & CorelDRAW Integration)
  Optional Extras:
  2nd Pen Kit
  Extra Push Roller Assembly
  Flange Kit For Enhanced Media Tracking
  Automatic Take Up Spool For 140cm & 160cm Version
